Buckleys Roofing Test Kits enable inspectors to quickly and effectively test non-conductive roof finishes (i.e. bitumen, liquid-applied, single-ply and asphalt) for pinholes, porosity and other defects. Renowned for exceptional build quality, outstanding customer care and constant product development; Buckleys offers customers a prompt, reliable service worldwide. These products have been extensively used for many years in the petro-chemical, aerospace, pipeline, construction and plastic fabrication industries.

How it works:

The Wet Roof Pro generates electrical current within the water on the roof’s surface. Leaks in the roof membrane allow water to flow through and contact earthed areas of the structure, completing an electrical circuit. The detector unit uses two test probes to track the direction of current flow to earth and enables the user to locate the leak.

The Dry Roof Pro roof leak detectors utilise the non-conductive properties of roof membranes as an electrical insulator whilst the substrate beneath the membrane conducts electrical current and is earthed to the structure of the building. The detector unit is also earthed to the building and the test probe is connected to the positive side of the detector, creating an ‘open circuit’. As the detector passes a defect in the membrane, the current required to complete an electrical circuit reduces due to the lower dialectric strength of the membrane. As an electrical circuit is created, current ‘jumps’ the gap to earth, triggering the detector unit’s alarm.

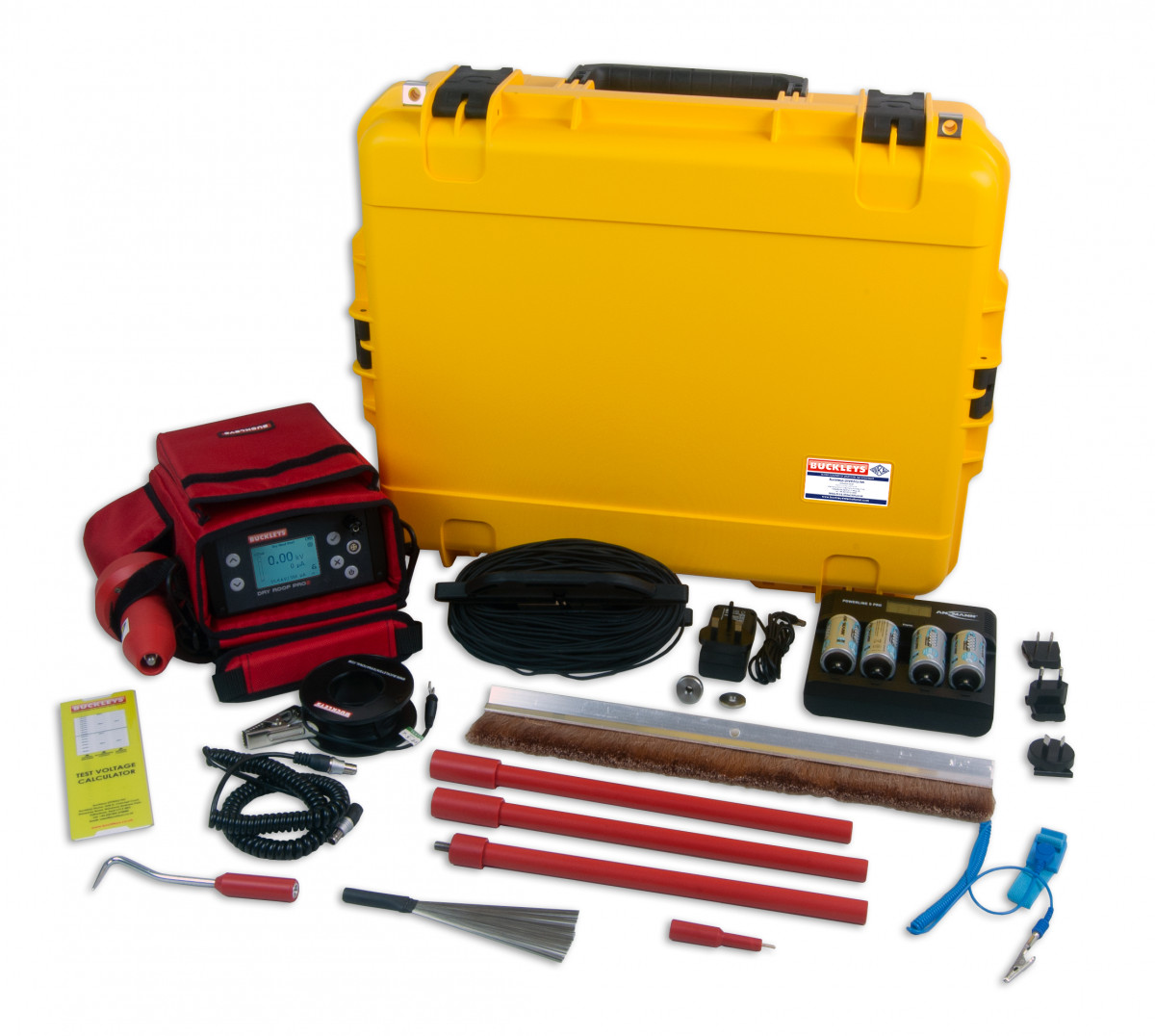

Kit includes:

⁂ Main detector unit (5700-0371)
⁂ Test probe handle and nosecone (6005-0503)
⁂ Interconnecting lead (6005-0504)
⁂ Anti-static wristband (4016-0132)
⁂ Calibration certificate (5830-0054)
⁂ 150mm stainless steel drum brush electrode (6005-0237)
⁂ 5m earth cable on reel (6005-0073)
⁂ D-cell rechargeable batteries x4 (6005-0002)
⁂ Battery charger with power adaptors and in-car charger (1002-0027)
⁂ Mid-section extension rod x2 (6005-0459)
⁂  End-section extension rod (6005-0460)
⁂ 450mm straight phosphor-bronze brush electrode (6005-0027)
⁂ Test-voltage calculator (6005-0083)
⁂ Pointed probe electrode (6005-0236)
⁂ Padded carry bag with shoulder strap (6005-0456)
⁂ 50m earth extension cable (6005-0076)
⁂ High-visibility transit case with CNC router cut insert (6005-0457)
⁂ Seam probe electrode (6005-1015)

Specification

⁂ Output voltage range: 0.9kV – 40kV
⁂ Recommended coating  thickness range: Up to 25.6mm (using NACE SP0274)
⁂ Sensitivity threshold range: 10μA - 450μA (factory-set to 200μA)
⁂ Meter accuracy: <10kV: +/- 10V. >=10kV +/- 100V
⁂ Built-in test standards: NACE SP0274/NACE SP0490/ NACE SP0188/ASTM D5172/ASTM G62/ISO 21809-2*
⁂ Unit weight: 1.64kg
⁂ Handle weight: 720g
⁂ Packed weight: 13.6kg
⁂ Unit dimensions: 172 x 85 x 235mm
⁂ Handle dimensions: 290 x 85mm
⁂ Packed dimensions: 510 x 250 x 630mm
⁂ Battery type: 4 x D-cell/LR20
* These standards are pre-programmed and are provided for convenience. However, it is the user’s responsibility to ensure that the correct settings are chosen for the intended application of this unit.
Commodity Code: 9030337000
